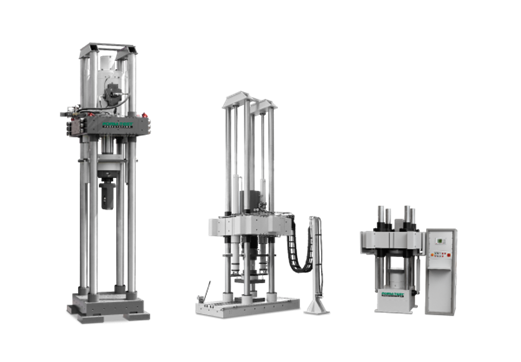

Compression Testing Machines

For standard-compliant compression strength testing of concrete cubes, concrete cylinders, concrete drill cores, natural stone samples, sand-lime bricks, masonry bricks, aerated concrete blocks and aerated concrete blocks, among others. Compression tests on building material samples: Cubes, concrete cylinders, brickwork, stones and elements made of unreinforced concrete or lightweight concrete, bricks, sand-lime bricks and elements, ceramic clinkers, cellular concrete blocks and hollow blocks.

Ø Compression Testing Machine Type ALPHA 10



Specifically for large specimens as the height can easily be set by the hydraulic adjustable upper crosshead. Compression tests on specimens of building materials:

·       cubes, concrete cylinders

·       bodies of masonry

·       stones and elements made of unreinforced concrete or light concrete

·       bricks

·       calcareous sandstones and elements

·       ceramic clinkers

·       cellular concrete blocks

·       hollow blocks







Accuracy	·       according to DIN EN ISO 7500-1 and DIN EN 12 390-4, Class 1 ·       including determining the relative turnover voltage ·       in expansion cylinder model according to DIN 51 302-2 (DIN EN 12 390-3 normative appendix "A" ·       model corresponding to Supplement 1 for DIN EN ISO 7500-1 (DIN 51 220, DIN 51 223 and DIN 51 302-1)
Sizes	·       Testing strength max. 1000 - 10 000 kN
Drive and Control	·       A1: Drive station Model AS-M10 - for manual control via precision control valve ·       A2: Drive station AS-C20 - for automatic load, displacement or deformation controlling – depending on level of attachments – in the closed loop of the servo-hydraulic.
Options and Accessories	·       shatterproof guard ·       test cylinder in double-action model ·       size of pressure plates particularly fitting the test piece ·       electronic load cell ·       testing devices ·       measuring and controlling equipment for lateral strain ·       test software PROTEUS

-          Compression Testing Machine ALPHA 10-2000

Specifically for large specimens as the height can easily be set by the hydraulic adjustable upper crosshead. Compression tests on specimens of building materials:

·       cubes, concrete cylinders

·       bodies of masonry

·       stones and elements made of unreinforced concrete or light concrete

·       bricks

·       calcareous sandstones and elements

·       ceramic clinkers

·       cellular concrete blocks

·       hollow blocks



Accuracy	·       according to DIN EN ISO 7500-1 and DIN EN 12 390-4, Class 1 ·       including determining the relative turnover voltage ·       in expansion cylinder model according to DIN 51 302-2 (DIN EN 12 390-3 normative appendix "A" ·       model corresponding to Supplement 1 for DIN EN ISO 7500-1 (DIN 51 220, DIN 51 223 and DIN 51 302-1)
Sizes	·       Testing strength max. 1000 - 2000 kN
Drive and Control	·       A1: Drive station Model AS-M10 - for manual control via precision control valve ·       A2: Drive station AS-C20 - for automatic load, displacement or deformation controlling – depending on level of attachments – in the closed loop of the servo-hydraulic.
Options and Accessories	·       shatterproof guard ·       test cylinder in double-action model ·       size of pressure plates particularly fitting the test piece ·       electronic load cell ·       testing devices ·       measuring and controlling equipment for lateral strain ·       test software PROTEUS





-

-          Compression Testing Machine ALPHA 10-2000 S

Specifically for large specimens as the height can easily be set by the hydraulic adjustable upper crosshead. Compression tests on specimens of building materials:

·       cubes, concrete cylinders

·       bodies of masonry

·       stones and elements made of unreinforced concrete or light concrete

·       bricks

·       calcareous sandstones and elements

·       ceramic clinkers

·       cellular concrete blocks

·       hollow blocks

Accuracy	according to DIN EN ISO 7500-1 and DIN EN 12 390-4, Class 1 including determining the relative turnover voltage in expansion cylinder model according to DIN 51 302-2 (DIN EN 12 390-3 normative appendix "A" model corresponding to Supplement 1 for DIN EN ISO 7500-1 (DIN 51 220, DIN 51 223 and DIN 51 302-1)
Sizes	Testing strength max. 1000 - 2000 kN
Drive and Control	A1: Drive station Model AS-M10 - for manual control via precision control valve A2: Drive station AS-C20 - for automatic load, displacement or deformation controlling – depending on level of attachments – in the closed loop of the servo-hydraulic.
Options and Accessories	shatterproof guard test cylinder in double-action model size of pressure plates particularly fitting the test piece electronic load cell testing devices measuring and controlling equipment for lateral strain test software PROTEUS





-          Compression Testing Machine ALPHA 10-5000

Rehearsals

·       Cubes, cylinders made of concrete and high-strength concrete

·       wall elements

·       masonry body

·       Stones and elements of unreinforced concrete or lightweight concrete

·       brick

·       Sand-lime bricks and elements

·       ceramic clinker

·       hollow blocks



Precision	·       according to DIN EN ISO 7500-1 and DIN EN 12 390-4, class 1 ·       with determination of the relative reversal range ·       in expansion cylinder design according to DIN 51 302-2 (DIN EN 12 390-3 normative appendix "A") ·       Design according to Supplement 1 to DIN EN ISO 7500-1 (DIN 51 220, DIN 51 223 and DIN 51 302-1)
Sizes	·       Test force selectable from 2000 ... 15000 kN
Range of application	·       specially designed for high flexibility in the sample sizes of building materials ·       Monitoring of hardened concrete, including high-strength concrete ·       Suitability tests for determining compressive strength ·       building materials research ·       building material development
Test facilities	·       material testing institutes ·       colleges ·       Building material testing stations ·       research laboratories
Norms	·       IN 12390-3,-4,-5 IN 12504-1, IN 1354, IN 1521, IN 1338, IN 772-6, IN 13286-41  ·       DIN 1048-4 ·       ASTM C39, ASTM E447 ·       BS 1610, BS 1681 ·       according to current international standards (ASTM, DIN, BS, etc.) depending on application
Application	·       static PRESSURE SEARCH with a wide range of different sample dimensions ·       away regulated experiments ·       deformation regulated  attempts ·       Determination of the modulus of elasticity (modulus of elasticity) ·       automatic servo control in closed loop for reproducible test results
Execution	·       Individual components Test frame and drive station with integrated hydraulics, digital controller and test software are removed and connected to each other depending on the configuration. This allows the user a wide range of expansion stages and options



Frames	·       highly rigid 4-column load frame ·       the height of the test chamber can be infinitely adjusted () via the upper cross beam ·       the clamping is passive and backlash-free on the 4 hard chrome plated machine columns
Test cylinder	·       single-acting
Pressure plates	·       upper pressure plate ball bearing for an inclination of up to 3° ·       Expansion cylinder design
Options and Accessories	·       AS drive station with connection for up to 4 test frames ·       Measuring and weighing station with integrated measuring and control components ·       Test software "PROTEUS" in modular system depending on the application for test control with measured value acquisition and data storagde PROTEUS



-          Compression Testing Machine ALPHA 10-5000 S

Specifically for large specimens as the height can easily be set by the hydraulic adjustable upper crosshead. Compression tests on specimens of building materials:

• cubes, concrete cylinders
• bodies of masonry
• stones and elements made of unreinforced concrete or light concrete
• bricks
• calcareous sandstones and elements
• ceramic clinkers
• cellular concrete blocks
• hollow blocks



Accuracy	according to DIN EN ISO 7500-1 and DIN EN 12 390-4, Class 1 including determining the relative turnover voltage in expansion cylinder model according to DIN 51 302-2 (DIN EN 12 390-3 normative appendix "A" model corresponding to Supplement 1 for DIN EN ISO 7500-1 (DIN 51 220, DIN 51 223 and DIN 51 302-1)
Sizes	Testing strength max. 1000 - 5000 kN
Drive and Control	A1: Drive station Model AS-M10 - for manual control via precision control valve A2: Drive station AS-C20 - for automatic load, displacement or deformation controlling – depending on level of attachments – in the closed loop of the servo-hydraulic.
Options and Accessories	shatterproof guard test cylinder in double-action model size of pressure plates particularly fitting the test piece electronic load cell testing devices measuring and controlling equipment for lateral strain test software PROTEUS





-

-          Compression Testing Machine ALPHA 10-1000 AK-4

Specifically for large specimens as the height can easily be set by the hydraulic adjustable upper crosshead. Compression tests on specimens of building materials:

• cubes, concrete cylinders
• bodies of masonry
• stones and elements made of unreinforced concrete or light concrete
• bricks
• calcareous sandstones and elements
• ceramic clinkers
• cellular concrete blocks
• hollow blocks



Accuracy	according to DIN EN ISO 7500-1 and DIN EN 12 390-4, Class 1 including determining the relative turnover voltage in expansion cylinder model according to DIN 51 302-2 (DIN EN 12 390-3 normative appendix "A" model corresponding to Supplement 1 for DIN EN ISO 7500-1 (DIN 51 220, DIN 51 223 and DIN 51 302-1)
Sizes	Testing strength max. 1000 kN
Drive and Control	A1: Drive station Model AS-M10 - for manual control via precision control valve A2: Drive station AS-C20 - for automatic load, displacement or deformation controlling – depending on level of attachments – in the closed loop of the servo-hydraulic.
Options and Accessories	shatterproof guard test cylinder in double-action model size of pressure plates particularly fitting the test piece electronic load cell testing devices measuring and controlling equipment for lateral strain test software PROTEUS



-          Compression Testing Machine ALPHA 10-10000 PK-4



Specifically for large specimens as the height can easily be set by the hydraulic adjustable upper crosshead. Compression tests on specimens of building materials:

• cubes, concrete cylinders
• bodies of masonry
• stones and elements made of unreinforced concrete or light concrete
• bricks
• calcareous sandstones and elements
• ceramic clinkers
• cellular concrete blocks
• hollow blocks







Accuracy	according to DIN EN ISO 7500-1 and DIN EN 12 390-4, Class 1 including determining the relative turnover voltage in expansion cylinder model according to DIN 51 302-2 (DIN EN 12 390-3 normative appendix "A" model corresponding to Supplement 1 for DIN EN ISO 7500-1 (DIN 51 220, DIN 51 223 and DIN 51 302-1)
Sizes	Testing strength max. 1000 - 10 000 kN
Drive and Control	A1: Drive station Model AS-M10 - for manual control via precision control valve A2: Drive station AS-C20 - for automatic load, displacement or deformation controlling – depending on level of attachments – in the closed loop of the servo-hydraulic.
Options and Accessories	shatterproof guard test cylinder in double-action model size of pressure plates particularly fitting the test piece electronic load cell testing devices measuring and controlling equipment for lateral strain test software PROTEUS







Ø

Ø Compression Testing Machine Type MEGA 11

For the compression and Brasilian test according to standards on:

·       concrete cylinders

·       concrete drilling cores

·       cement prisms and mortar prisms

·       mortar for floor screed and floor masses

·       fireproof materials

·       paving stones on concrete

·       paving stones on paving stones

Compact compression testing machine with 2-column frame. Machine columns chromium-plated.

For speed-controlled tests, deformation-controlled tests and measuring the E-module.

Accuracy	·       EN ISO 7500-1 ·       Qualitiy Class 1
Sizes	·       400 kN ·       600 kN ·       1000 kN ·       1200 kN
Drive and Control	·       Hydraulic aggregate in compact housing with controlling valve and digital controller DIGIMAXX® C-40 for the automatic increase in load or semi-automatic control with digital display DIGIMESS® M-10
Options and Accessories	·       electronic load cell ·       double-action test cylinder ·       piston stroke measuring and controlling ·       air cooler ·       built-in tape printer ·       WinTrans data transmission software ·       software for testing building materials PROTEUS



-          MEGA 11-50-DM-1-S



-          MEGA 11-300

-          Compression Testing Machine MEGA 11-350 SD

·       for determination of the tensile splitting strength on paving stones specially acc. to EN 1338

·       compact design

·       with 2 columns frame machine columns in chromed design

Accuracy acc.to:

·       DIN EN ISO 7500-1

·       Quality Class 1

Drive and Control:

·       compact design with machine base  UB 02-C40

·       modular construction for extension for up to 4 testing machine frames

·       also possible with separate drive station AS C 40-N or AS C 40 N-PC

·       extension also for compression strength on cement acc. to EN 196 and compression strength of unbounded and hydraulic bounded mixtures acc. to EN 13286-41

Options:

·       set compression plates with pendulum axle

·       compression device DV 600 AZ with compression plates 40 x 40 mm

·       test software PROTEUS MT

·       test module “tensile splitting test EN 1338”





-

-          Compression Testing Machine MEGA 11-600 DM1-S

For the compression and Brasilian test according to standards on:

·       concrete cylinders

·       concrete drilling cores

·       cement prisms and mortar prisms

·       mortar for floor screed and floor masses

·       fireproof materials

·       paving stones on concrete

·       paving stones on paving stones

Compact compression testing machine with 2-column frame. Machine columns chromium-plated. For speed-controlled tests, deformation-controlled tests and measuring the E-module.

Accuracy	·       EN ISO 7500-1 ·       Qualitiy Class 1
Size	·       600 kN
Drive and Control	·       Hydraulic aggregate in compact housing with controlling valve and digital controller DIGIMAXX® C-20 for the automatic increase in load or semi-automatic control with digital display DIGIMESS® M-10
Options and Accessories	·       electronic load cell ·       double-action test cylinder ·       piston stroke measuring and controlling ·       air cooler ·       built-in tape printer ·       WinTrans data transmission software ·       software for testing building materials PROTEUS



Ø Compression Test Machine ALPHA-1-200-S



Application

·       for hot pressure testing of seals with customer-specific pressure devices



Special features

·       high machine stiffness

·       high accuracy requirements

·       test space, installation conditions and machine configuration specially designed for the application

·       16 control or measuring channels

·       RS-C30 control station with a flexible digital controller for 16 control or measurement channels





Ø

Ø Compression Testing Machine ALPHA 2

For the compression test etc. conforming to standards on:

·       concrete cubes

·       concrete cylinders

·       concrete drilling cores

·       natural stone specimens

Compression testing machine frame in a very sturdy 4-column model. Complies with the requirements on the EN 12390-4 expansion cylinder. For speed-controlled tests, deformation-controlled testing methods and measuring the E-module.

Accuracy EN ISO 7500-1,

                                          EN 12390-4,
                                          ASTM C 39,
                                          BS 1610
                                          Quality class 1

Sizes 4000 kN
                                          5000 kN
                                          6000 kN

Drive and Control             via the drive station AS-C20 N servohydraulic, automatic control
                                          or via the drive station AS-M10 semi-automatic, manual control.

Options and Accessories: chromium-plated columns
                                           electronic load cell
                                           double-acting test cylinder
                                           piston stroke measuring
                                           piston stroke control
                                           built-in tape printer
                                           WinTrans data transmission software
    PROTEUS software for testing building materials





-          Compression Testing Machine ALPHA 2-4000



-          Compression Testing Machine ALPHA 2-5000



Ø Compression Testing Machine ALPHA 1-8000



Ø

Ø Compression Testing Machine ALPHA 3

or testing the compression etc. according to the standards on:

·       concrete cubes

·       concrete cylinders

·       concrete drilling cores



-         ALPHA 3-AD

Basic Line

Compression testing machines as "stand-alone“ solution in compact design with automatic load control.

·       Compression Testing Machine ALPHA 3-3000 AD

For testing the compression etc. according to the standards on:

·       concrete cubes

·       concrete cylinders

·       concrete drilling cores

Compact compression testing machine with sturdy 4- column frame.

Complies with the requirements on the EN 12390-4 expansion cylinder.

The machine is designed as a compact individual unit.

Accuracy	EN ISO 7500-1 EN 12390-4 ASTM C 39 BS 1610 ·       Quality Class 1
Sizes	2000 kN ·       3000 kN
Drive and Control	·       Hydraulic aggregate in compact housing with control valve and digital controller DIGIMAXX® C-44 for automatic increase in load.
Options and Accessories	WinTrans data transmission software ·       software for testing building materials PROTEUS





·

·       Compression Testing Machine ALPHA 3-3000 AD-Z for Brick Test

For testing the compression etc. according to the standards on:

·       concrete cubes

·       concrete cylinders

·       concrete drilling cores

Compact compression testing machine with sturdy 4- column frame.

Complies with the requirements on the EN 12390-4 expansion cylinder.

The machine is designed as a compact individual unit.



Accuracy	·       EN ISO 7500-1 ·       EN 12390-4 ·       ASTM C 39 ·       BS 1610 ·       Quality Class 1
Sizes	·       2000 kN ·       3000 kN
Drive and Control	·       Hydraulic aggregate in compact housing with control valve and digital controller DIGIMAXX® C-21 for automatic increase in load.
Options and Accessories	·       built-in tape printer ·       WinTrans data transmission software ·       software for testing building materials PROTEUS



-         ALPHA 3 – SD



Economy Line

Compression testing machines in compact design, with automatic load control - servo control - expandable for the connection of further testing machine frames.



·     Compression Testing Machine ALPHA 3-3000 SD

Compact compression testing machine with sturdy 4- column frame. Complies with the requirements on the EN ISO 7500-1 and EN 12390-4 expansion cylinder. The machine is designed as a compact individual unit.

Accuracy	·       EN ISO 7500-1 ·       EN 12390-4 ·       EN 2390-3 ·       EN 12504-2 ·       EN 206 ·       Quality Class 1
Sizes	·       2000 kN ·       3000 kN
Drive and Control	Hydraulic aggregate in compact housing with control valve and digital controller DIGIMAXX® C-40 for automatic increase in load.
Options and Accessories	built-in tape printer WinTrans data transmission software software for testing building materials PROTEUS





·

·     Compression Testing Machine ALPHA 3-3000 SD for Splitting Tensile Strength Test

Compact compression testing machine with sturdy 4- column frame. Complies with the requirements on the EN ISO 7500-1 and EN 12390-4 expansion cylinder. The machine is designed as a compact individual unit.

Accuracy	·       EN ISO 7500-1 ·       EN 12390-4 ·       EN 2390-3 ·       EN 12504-2 ·       EN 206 ·       Quality Class 1
Sizes	·       2000 kN ·       3000 kN
Drive and Control	·       hydraulic aggregate in compact housing with control valve and digital controller DIGIMAXX® C-21 for automatic increase in load.
Options and Accessories	·       built-in tape printer ·       WinTrans data transmission software ·       software for testing building materials PROTEUS



-

-         ALPHA 3 - S

Profi Line

Compression testing machines with  separate drive station with automatic load control  – servo control – expandable for the connection of up to 4 testing machine frame



Compression Testing Machine ALPHA 3-3000 S

for speed-controlled tests, deformation-controlled tests and measuring the

E-module. Compression testing machine frame in a very sturdy 4-column model. Complies with the requirements on the EN 12390-4 expansion cylinder.

Accuracy	EN ISO 7500-1 EN 12390-4 ASTM C 39 BS 1610 Güteklasse 1
Sizes	2000 kN 3000 kN
Drive and Control	With separate drive station AS-C20 N with built-in hydraulic aggregate with servo-control valve and digital controller DIGIMAXX® C-20 for automatic increase in load in the closed loop.
Options and Accessories	displacement control deformation control Deformationsregelung E-module measuring equipment software for testing building materials PROTEUS WinTrans data transmission software



Ø Compression Test Machine ALPHA 1-12000



Application Range

·       for static pressure tests



Size

·       test force 5000 Kn



Standards

·       DIN EN ISO 7500-1

·       DIN EN ISO 376



Precision

·       according to DIN EN ISO 376, class 0,5

·       from 40 kN class 1,0

·       from 100 kN class 0,5



Samples

·       load cells

·       force washers

·       force measuring axes

·       force measuring sleeves

·       weighing platforms



Test Facilities

·       manufacturers of force gauges

·       material testing institutes

·       users who use a large number of force transducers and subject them to self-monitoring



Application

·       calibration of force measuring elements with very high accuracy

·       continuous calibrations in direction of compressive force



Description

·       highly rigid 4-column load frame

·       special low-friction test cylinder with hydrostatic bearings

·       Build-Up system for high-precision force measurement via 3 precision force transducers

·       running-in carriage for efficient change of test specimens

·       pressure pads and distance plate adapted to the application

·       PA 30 hydraulic unit with sound insulation hood

·       drive station type C30-N-PC S with additional resolved measuring ranges

·       test software with coordinated calibration module for efficient calibration

·       lifting device for a quick change of the testing fixtures



Options / Accessories

·       retractable pressure plates

·       version for combined tensile and compression testing

·       higher forces and accuracies possible on request after verification





Ø

Ø Compression Testing Machine Type ALPHA 4

For testing compression strength according to the standards on:

·       calcareous sandstones

·       clay bricks

·       building bricks

·       cellular concrete stones

·       cellular concrete blocks

Compression testing machine frame in a very sturdy 4-column model.

Accuracy	·       EN ISO 7500-1 ·       Quality Class 1
Sizes	·       3000 kN
Drive and Control	·       via the drive station AS-C40 N servo-hydraulic, automatic control or ·       via the drive station AS-M10 semi-automatic, manual control.
Options and Accessories	·       reinforcement for testing bricks ·       expansion cylinder model according to EN 12390-4 ·       built-in tape printer ·       WinTrans data transmission software ·        software for testing building materialsPROTEUS







Ø

Ø Compression Testing Machine Type BETA 5

For testing the compression etc. according to standards on:

·       concrete cubes

·       concrete cylinders

·       concrete drilling cores



-          BETA 5 – AD

Inexpensive compact compression testing machine with 4-column frame (building-site machine). Complies with the requirements on the EN 12390-4 expansion cylinder. The machine is designed as a compact individual unit when space is restricted.

Accuracy	·       EN ISO 7500-1 ·       EN 12390-4 ·       ASTM C 39 ·       BS 1610 ·       Quality Class 1
Sizes	·       2000 kN ·       3000 kN
Drive and Control	·       Hydraulic aggregate in compact housing with digital controller DIGIMAXX® C-44 for automatic increase in load.
Options and Accessories	·       software for testing building materials PROTEUS MT



-          BETA 5 D-11

Inexpensive compact compression testing machine with 4-column frame. (building-site machine). The machine is designed as a very compact individual unit.

Accuracy	·       EN ISO 7500-1 ·       Qualitiy Class 1
Sizes	·       2000 kN ·       3000 kN
Drive and Control	·       Hydraulic aggregate in compact housing with precision controller and digital display DIGIMESS® M-11 for manual, semi-automatic increase in load.
Options and Accessories	·       software for testing building materials PROTEUS











Ø

Ø Compression and Bending/Flexure Testing Machine MEGA 6



For the bending tensile strength tests etc. according to standards on:

·       concrete cubes

·       concrete cylinders

·       concrete drilling cores

·       natural stone specimens

·       concrete plates

·       concrete kerb stones

·       concrete paving stones

·       natural stone kerb stones

·       natural stone plates

Compression test machine frame in a very sturdy 4-column model with bending test area at the side. The bending test area is equipped with a double-action test cylinder and an electronic load cell which is insensitive to lateral force . The model complies with the requirements on the EN 12390-4 expansion cylinder.

For speed-controlled tests, deformation-controlled testing methods and measuring the E-module.

Accuracy	·       EN ISO 7500-1 ·       EN 12390-4 ·       ASTM C 39 ·       BS 1610 ·       Quality Class 1
Sizes - Compression	·       3000 kN ·       4000 kN
Sizes - Bending	·       100 kN ·       200 kN ·       300 kN
Drive and Control	·       via the drive station AS-C20 N servo-hydraulic, automatic control or ·       via the drive station AS-M10 semi-automatic, manual control.
Options and Accessories	·       inset for 4-point loading set of pressure plates for the bending test area bending table with adjustable pressure rollers built-in tape printer WinTrans data transmission software ·       software for testing building materials PROTEUS

-          Compression and Bending Test Machine MEGA 6-4000-200 mit Abschervorrichtung

-          Compression and Bending Test Machine MEGA 6-3000-100 SD



-

-          Compression and Bending/Flexure Testing Machine MEGA 6-3000-100

For the bending tensile strength tests etc. according to standards on:

·         concrete cubes

·         concrete cylinders

·         concrete drilling cores

·         natural stone specimens

·         concrete plates

·         concrete kerb stones

·         concrete paving stones

·         natural stone kerb stones

·         natural stone plates

Compression test machine frame in a very sturdy 4-column model with bending test area at the side. The bending test area is equipped with a double-action test cylinder and an electronic load cell which is insensitive to lateral force . The model complies with the requirements on the EN 12390-4 expansion cylinder.

For speed-controlled tests, deformation-controlled testing methods and measuring the E-module.

Accuracy	EN ISO 7500-1 EN 12390-4 ASTM C 39 BS 1610 Quality Class 1
Sizes - Compression	3000 kN
Sizes - Bending	100 kN
Drive and Control	via the drive station AS-C20 N servo-hydraulic, automatic control or via the drive station AS-M10 semi-automatic, manual control.
Options and Accessories	inset for 4-point loading set of pressure plates for the bending test area bending table with adjustable pressure rollers built-in tape printer WinTrans data transmission software software for testing building materials PROTEUS





Ø

Ø Compression and Bending Testing Machine Type MEGA 7



For the bending tensile strength tests etc. according to standards on:

·       concrete cubes

·       concrete cylinders

·       concrete drilling cores

·       concrete plates

·       concrete kerb stones

·       natural stone kerb stones

·       natural stone plates

Compression test machine frame in sturdy 4-column version with bending test frame at the side in 2-column version.

Accuracy	·       EN ISO 7500-1 ·       EN 12390-4 ·       ASTM C 39 ·       BS 1610 ·       Quality Class 1
Sizes- Compressive	·       2000 kN ·       3000 kN
Sizes-Bending	·       100 kN ·       200 kN
Drive and Control	·       Hydraulic aggregate in compact housing with precision controller and digital display DIGIMESS® M-11 for the manual, semi-automatic increase in load.
Options and Accessories	·       inset for 3-point loading (EN 12390-5 + EN 1339) ·       inset for 4-point loading(EN 12390-5) ·       inset for kerb stones (EN 1340) ·       built-in tape printer ·       WinTrans data transmission software ·       software for testing building materials PROTEUS







Ø

Ø Compression and Bending Testing Machine Type MEGA 10

For the determination of compressive   and bending strengths on cement acc. to EN 196 – ASTM C 348, ASTM C 349, ASTM C 109. drilling cores acc. to EN 12504-1. polymer modified mortars (PCC), polymer concrete and epoxy resin specimens EN 1433. refractories EN 993-5, EN 1402-6, EN 1094-5, ISO 8895, ISO 10059-1, ISO 100059-2.

·       compact design

·       with 2-column frame

·       columns prestressed, clamped free of play and hard-chrome plated



Accuracy

DIN EN ISO 7500-1
class 1

Sizes
Compression Test:

·       400 kN

·       500 kN

·       600 kN

·       1000 kN

·       1200 kN

Sizes
Bending Test:

·       20 kN

·       30 kN

·       50 kN

Force measurement via one electronic load cell each for compression and bending test unit.

Drive and Control:
Compact design – built-in hydraulic aggregate with control valve and digital controller DIGIMAXX C-20 for the automatic load increase.
Also available with separate drive station AS C 20-N or AS C 20-N-PC.

Options and Accessories:



·       simultaneous control for concurrent compression and bending testing

·       bending table with adjustable bending rollers

·       set of pressure plates with floating axle for the bending test area

·       enlarged test area

·       larger pressure plates

·       compression device DV 600 AZ with pressure plates 40 x 40 mm

·       bending device BV 10 OM

·       electronic piston stroke measuring and control equipment

·       test software PROTEUS MT

·       transfer software WinTrans



-          Compression and Bending Test Machine MEGA 10-400-20-1

For the determination of compressive   and bending strengths on cement acc. to EN 196 – ASTM C 348, ASTM C 349, ASTM C 109.
drilling cores acc. to EN 12504-1.
polymer modified mortars (PCC)
polymer concrete and epoxy resin specimens EN 1433.
refractories EN 993-5, EN 1402-6,
EN 1094-5, ISO 8895, ISO 10059-1,
ISO 100059-2.

compact design

with 2-column frame

columns prestressed, clamped free of play and hard-chrome plated



Accuracy

DIN EN ISO 7500-1
class 1

Sizes
Compression Test:

·       400 kN

Sizes
Bending Test:

·       20 kN

Force measurement via one electronic load cell each for compression and bending test unit.

Drive and Control:
Compact design – built-in hydraulic aggregate with control valve and digital controller DIGIMAXX C-20 for the automatic load increase.
Also available with separate drive station AS C 20-N or AS C 20-N-PC.

Options and Accessories:

·       simultaneous control for concurrent compression and bending testing

·       bending table with adjustable bending rollers

·       set of pressure plates with floating axle for the bending test area

·       enlarged test area

·       larger pressure plates

·       compression device DV 600 AZ with pressure plates 40 x 40 mm

·       bending device BV 10 OM

·       electronic piston stroke measuring and control equipment

·       test software PROTEUS MT

·       transfer software WinTrans



-          Compression and Bending Test Machine MEGA 10-1000-50









Ø

Ø Compression and Bending Testing Machine Type MEGA 100

For the determination of compressive   and bending strengths on cement, mortar, screed , plaster acc. to
EN 196 – ASTM C 348,
ASTM C 349, EN 1015
EN 13813 – EN 13892-3 and drilling cores acc. to EN 12504-1.

compact design

with 2-column frame

precision profiles prestressed and clamped free of play



Accuracy

DIN EN ISO 7500-1
class 1

Sizes
Compression Test:

·       100 kN

·       200 kN

·       300 kN

Sizes
Bending Test:

·       10 kN

·       20 kN

·       30 kN

Force measurement via one electronic load cell each for compression and bending test unit.

Drive and Control:
Compact design – built-in hydraulic aggregate with control valve and digital controller DIGIMAXX C-40 for the automatic load increase or semi-automatically controlled with digital controller DIGIMESS M-10.
Also available with separate drive station AS C 40-K, AS C 40-N or AS C 40-N-PC.

Options and Accessories:

·       bending table with adjustable bending rollers

·       set of pressure plates with floating axle for the bending test area

·       enlarged test area

·       larger pressure plates

·       compression device DV 600 AZ with pressure plates 40 x 40 mm

·       bending device BV 10 OM

·       electronic piston stroke measuring and control equipment

·       test software PROTEUS MT





Ø

Ø Compression Testing Machine Type MEGA 110

for determination of the compression strength on cement, mortar, screed, gypsum acc. to EN 196 - EN 1015,
EN 13813 – EN 13892-3
as well as
compression strength of unbounded and hydraulic bounded mixtures acc. to EN 13286-41
resp.
compression strength on cores acc. to EN 12504-1

Compact design

With 2 columns frame
Precision profiles pre-clamped and
backlash jamed

Accuracy acc. to

·       EN ISO 7500-1

·       class 1

Sizes:

·       100 kN

·       200 kN

·       300 kN

Load measuring by electronic load cell

Drive and Control
Compact design with installed hydraulic aggregate with control valve and digital controller DIGIMAXX C-40 for the automatic load increase or semi-automatic controlled with digital controller DIGIMESS M-10

or with separate drive station
AS C 40-N oder AS C 40-N-PC

Options and Accessories Compression device DV 600 AZ with compression plates
40 x 40 mm

·       Bending device BV 10 OM

·       Electronic displacement measuring and control equipment

·       Test software PROTEUS MT



-          Compression Testing Machine MEGA 110-200 DM1-S



for determination of the compression strength on cement, mortar, screed, gypsum acc. to EN 196 - EN 1015,
EN 13813 – EN 13892-3
as well as
compression strength of unbounded and hydraulic bounded mixtures acc. to EN 13286-41
resp.
compression strength on cores acc. to EN 12504-1

Compact design

With 2 columns frame
Precision profiles pre-clamped and
backlash jamed

Accuracy acc. to

·       EN ISO 7500-1

·       class 1

Size:

·       200 kN

Load measuring by electronic load cell

Drive and Control
Compact design with installed hydraulic aggregate with control valve and digital controller DIGIMAXX C-20 for the automatic load increase or semi-automatic controlled with digital controller DIGIMESS M-10

or with separate drive station
AS C 20-N oder AS C 20-N-PC

Options and Accessories

·       Compression device DV 600 AZ with compression plates
40 x 40 mm

·       Bending device BV 10 OM

·       Electronic displacement measuring and control equipment

·       Test software PROTEUS MT

·       Transfer-Software WinTrans





Ø Universal Testing Machines UP 400

Application Range

·       universal compression tests



Size

·       test force max.: 300 ... 400 kN

·       other sizes or test loads available on request



Precision

·       Class 1, according to DIN EN ISO 7500-1



Samples

·       heavy test specimens made of different materials



Application

·       pressure tests with suitable accessories

·       testing of attachments and covers for traffic areas

·       for force, displacement or deformation control - depending on the configuration - in the closed control loop of the servo hydraulics



Description

·       test frame for very flexible compression tests with a wide variety of superstructures

·       high stiffness and absolute alignment accuracy produce high measurement accuracy and reproducibility of results

·       high flexibility in adaptation and fixation options due to single-room design with good accessibility

·       servo-hydraulically controlled low-friction test cylinder with force transducer for accurate and precise test control and evaluation



Options / Accessories

·       drive station for automatic force control in a closed servo-hydraulic control loop

·       PROTEUS test software for simple test control and evaluation

·       transverse head adjustment via industrial crane, test cylinder or optional hydraulic adjustment





Ø

Ø Universal Testing Machines UP 1000

Application Range

·       universal compression tests



Size

·       test force max.: 300 ... 1000 kN

·       other sizes or test loads available on request



Precision

·       Class 1, according to DIN EN ISO 7500-1



Samples

·       heavy test specimens made of different materials



Application

·       pressure tests with suitable accessories

·       testing of attachments and covers for traffic areas

·       for force, displacement or deformation control - depending on the configuration - in the closed control loop of the servo hydraulics



Description

·       test frame for very flexible compression tests with a wide variety of superstructures

·       high stiffness and absolute alignment accuracy produce high measurement accuracy and reproducibility of results

·       high flexibility in adaptation and fixation options due to single-room design with good accessibility

·       servo-hydraulically controlled low-friction test cylinder with force transducer for accurate and precise test control and evaluation



Options / Accessories

·       drive station for automatic force control in a closed servo-hydraulic control loop

·       PROTEUS test software for simple test control and evaluation

·       transverse head adjustment via industrial crane, test cylinder or optional hydraulic adjustment

Decades of experience in the rock testing field mean that FORM+TEST is a sought-after partner for geoscience. Our test solutions can determine typical geomechanical properties like uniaxial compressive strength and elasticity, or can simulate compression and temperature conditions on test specimens.

Servohydraulic systems with high test loads are used in combination with the most exacting measuring technology. The interplay of the individual components plays a crucial role in the reliability of the results. This is a benefit, for example, to energy companies, mine operators and research facilities when they are investigating deposits.

Ø Triaxial Test Systems



·      Triaxial Cell TZ 125 S

Application

·     Triaxial apparatus for testing rock samples under pressure and temperature conditions from depths up to 5 km

·     Adjustment of drilling processes with a fixed adaptable drilling drive

·     suitable for the application of drilling, stimulation and pore fluids in rock under pressure



Testing Norm

·     free research experiments without reference to standards

Description

·     all individual parts are made of high-strength special steel

·     Sample can be simultaneously subjected to sheath pressure, pore fluid pressure and drilling fluid pressure of 125 MPa

·     Mounting options for optional sensors

·     special construction according to specification requirements

·     Exchangeable cell lids / cell bottom for other applications

·     Holes for electrical feedthroughs of acoustic, optical and thermal sensors

Dimension

·     Sheath pressure / pore fluid pressure / drilling fluid pressure: 125 MPa

·     Temperature max.: 200°C

·     Specimen length: 3000 mm

Drive and control

·     Pressure intensifier for generating the pore pressure in the triaxial cell for continuous flow through the sample with controlled fluid pressures

·     Temperature control device for controlling the internal cell temperature

·     Digital measurement and control electronics system DIGIMAXX^® C-30, PROTEUS MT-Software package rock and earth construction with evaluation software

Options and accessories

·     horizontal retraction device on the cell lid for easy handling of the sample loading via rods with roller bearings

·     Heat

·     Measurement technology, i.e. complete sensor technology such as displacement transducers, strain transducers, strain gages etc.

·     Fluid/gas supply and discharge

·     Ultrasonic testing systems

·     permeability testing

·     Torque wrench / torque intensifier

·     protective sheath

---

·      Triaxial Cell TZ 700

For triaxial stress-strain experiments on cylindrical specimens: triaxial multistage tests to examine the post-failure reaction, stabilization or a  stepwise increase of the confining pressure is possible. The increase of axial stress is   force-displacement controlled or strain-controlled.

For: cylindrical rock and soil cores with a length/diameter-ratio of 2:1

Standard

·      DIN 18137-2, Issue:1990-12 Building ground, tests and testing equipment; determing the lateral resistance; triaxial test

·     ISRM recommendations

·     if required, the national recommendations can be taken into account

Accuracy

·     class 1

Design size

·     max. confining pressure: 700 bar

Options and Accessories

·      specially designed compression test frame for carrying out triaxial strength tests for use with a triaxial cell

·     equipment to facilitate transportion into the test area

·     separately controllable pump aggregate for the hydraulic supply of the

compression testing machine / pressure transducer

·      pressure transducer for producing the pore pressure in the triaxial cell so the specimen is continually subjected to flow-through with controlled fluid pressures

·     safety system (confining pressure > pore pressure)

·      tension measuring and controlling equipment for determining the longitudinal and lateral deformation on cylinders

·     ultrasonic test unit

·     tempering equipment to control the temperature inside the cell

·     digital measuring and controlling electronic systemDIGIMAXX^® C-30,

·     PROTEUS-software packet "Rock and Earthworks" with GGU evaluation software

·      Triaxial Cell 1000 bar

For triaxial stress-strain experiments on cylindrical specimens: triaxial multistage tests to examine the post-failure reaction, stabilization or a  stepwise increase of the confining pressure is possible. The increase of axial stress is   force-displacement controlled or strain-controlled.

For: cylindrical rock and soil cores with a length/diameter-ratio of 2:1



Standard

·       DIN 18137-2, Issue:1990-12 Building ground, tests and testing equipment; determing the lateral resistance; triaxial test

·       ISRM recommendations

·       if required, the national recommendations can be taken into account



Accuracy

·       class 1



Design size

·       max. confining pressure: 1000 bar



Options and Accessories

·       specially designed compression test frame for carrying out triaxial strength tests for use with a triaxial cell

·       equipment to facilitate transportion into the test area

·       separately controllable pump aggregate for the hydraulic supply of the

compression testing machine / pressure transducer

·       pressure transducer for producing the pore pressure in the triaxial cell so the specimen is continually subjected to flow-through with controlled fluid pressures

·       safety system (confining pressure > pore pressure)

·       tension measuring and controlling equipment for determining the longitudinal and lateral deformation on cylinders

·       ultrasonic test unit

·       tempering equipment to control the temperature inside the cell

·       digital measuring and controlling electronic systemDIGIMAXX^® C-30,

·       PROTEUS-software packet "Rock and Earthworks" with GGU evaluation software



·      Triaxial Cell 1500 bar



For triaxial stress-strain experiments on cylindrical specimens: triaxial multistage tests to examine the post-failure reaction, stabilizing or intermittently increasing the surface pressure is possible. The rise in the axial tension takes the path of force or is expansion-controlled.

For: cylindrical rock and soil cores with a length/diameter ratio of 2:1



Standard

·  DIN 18137-2, Issue:1990-12 Building ground, tests and testing

equipment; determing the lateral resistance; triaxial test

·  ISRM recommendations

·  if required, the national recommendations can be taken into account

Accuracy

·  Class 1

Size

·  max. surface pressure: 1500 bar

·  max. temperature inside cell: 200 °C

Options and Accessories

·  specially designed compression test frame for carrying out triaxial strength tests in the inset with a triaxial cell

·  equipment to facilitate transportion into the testing room

·  separately controllable pump aggregate for the hydraulic supply of the

compression testing machine / pressure intensifier

·  pressure intensifier for producing the pore pressure in the triaxial cell so the specimen is continually subjected to flow-through with controlled fluid pressures

·  safety system (surface pressure > pore pressure)

·  tension measuring and controlling equipment for determining the longitudinal and lateral deformation on cylinders

·  ultrasonic test unit

·  tempering equipment to control the temperature inside the cell

·  digital measuring and controlling electronic systemDIGIMAXX^® C-21,

·  PROTEUS-software packet "Rock and Earthworks" with GGU evaluation software





·      Triaxial Testing System TZ 1000



Rehearsals

·     cylindrical rock samples in different dimensions

Norms

·     DIN

·     ASTM

·     ISRM

·     DGGT







Test facilities	·     Institutes for Geotechnology ·     tunnelling ·     Soil and rock mechanics
Sizes	·     Test force optionally between: 1000 ... 3000 kN ·     Traxial cell optionally between 500 ... 2000 bar
Range of application	·     uniaxial rock testing ·     Rock mechanical investigations ·     triaxial stress and deformation experiments
Application	·     stress-strain behaviour ·     Determination of rock-mechanical parameters such as uniaxial compressive strength, modulus of elasticity and shear strain factor ·     triaxial multi-stage experiments for the investigation of post-breakage behaviour
Execution	·     Individual components Test frame and drive station with integrated hydraulics, triaxial cell with pressure intensifier, fast-reacting digital controller and user-friendly test software are removed and connected to each other depending on the configuration.  This allows the user a wide range of expansion stages and options.
Options/ Accessories	·     Test frame with adjustable test chamber height ·     Running-in aids for specimens and fixtures ·     extra stiff test frame uniaxial / triaxial tests









Ø

Ø Compression Testing Machine ALPHA 1-2000 S



Compression testing machine for tests on rock samples with triaxial cell.

Specially suitable for large specimen dimensions, as the hydraulically adjustable upper cross head allows a simple adjustment of the test area height.



Compression tests on building materials:

Concrete cubes and cylinders, bodies of masonry, stones and elements made of unreinforced concrete  or lightweight concrete, bricks, sand-lime bricks and  elements, ceramic clinkers, aerated concrete blocks, hollow blocks.







Ø

Ø Triaxial Testing System TZ 1000



Rehearsals

·       cylindrical rock samples in different dimensions



Norms

·       DIN

·       ASTM

·       ISRM

·       DGGT

Test facilities	·       Institutes for Geotechnology ·       tunnelling ·       Soil and rock mechanics
Sizes	·       Test force optionally between: 1000 ... 3000 kN ·       Traxial cell optionally between 500 ... 2000 bar
Range of application	·       uniaxial rock testing ·       Rock mechanical investigations ·       triaxial stress and deformation experiments
Application	·       stress-strain behaviour ·       Determination of rock-mechanical parameters such as uniaxial compressive strength, modulus of elasticity and shear strain factor ·       triaxial multi-stage experiments for the investigation of post-breakage behaviour
Execution	·       Individual components Test frame and drive station with integrated hydraulics, triaxial cell with pressure intensifier, fast-reacting digital controller and user-friendly test software are removed and connected to each other depending on the configuration.  This allows the user a wide range of expansion stages and options.
Options/ Accessories	·       Test frame with adjustable test chamber height ·       Running-in aids for specimens and fixtures ·       extra stiff test frame uniaxial / triaxial tests







Ø

Ø Compression Test Machine, ALPHA 2-3000 "S"



Compression tests on rock specimens for load, displacement or deformation control in the closed loop of the servo-hydraulic on:

·       cylindrical rock specimens of granite, basalt etc. In the ratio 2:1 with Ø 25,4 / 50,8 / 76,2 / 101,6 / 127 / 152,4 mm



Accuracy

·       according to DIN 18136 Issue 2003-11 building ground – examining

soil specimens – uniaxial compression test

·       DIN EN ISO 7500-1, Class 1 including determining the relative width of backlash



Sizes

·       test load (pressure) max.: 3 000 Kn



Options and Accessories

·       triaxial cell for the triaxial strength test on rock specimens

·       connection provided for more test machines

·       extra stiff test frame uniaxial/triaxial tests

·       additional load cell in the lower measuring range (e.g. 1000 kN)

·       10 volts analog exit, load or displacement

·       lateral strain measuring and controlling equipment

·       drive station AS with powerful hydraulic aggregate

·       specific test machine controller with reducing the measuring distance

by peak value to enable faster recording of the specimen rupturing as well as synchronous measuring of all meter flumes

·        „PROTEUS“ test software for test controlling with measurement
logging and data storage

·       GGU evaluation software



Ø Compression Testing Machine ALPHA 1-3000 S

Ø Compression Testing Machine ALPHA 1-2000

Application Range

·       monoaxial rock testing

·       rock mechanical investigations



Size

·       test load optionally between 1000 ... 3000 kN



Standards

·       DIN

·       ASTM

·       ISRM

·       DGGT



Precision

·       according to DIN EN ISO 7500-1, class 0.5 (1)



Samples

·       cylindrical rock samples in different dimensions



Test Facilities

• geotechnical Institutes
• tunnel construction
• soil and rock mechanics

Application

• determination of rock-mechanical parameters such as uniaxial compressive strength, tensile strength, modulus of elasticity and lateral extension ratio
• stress deformation behaviour
• determination of the crevice tensile strength



Description

·       individual components test frame and drive station with integrated hydraulics, fast-reacting digital controller and user-friendly test software are removed and connected with each other depending on the configuration.  This allows the user a wide range of configuration levels and options.

·       4-column load frame with extremely high longitudinal and lateral stiffness to keep material expansion as low as possible during the first specimen fracture

·       the machine columns are screwed backlash-free to the machine base and top

·       machine base and top made of solid material, all contact surfaces are precisely mechanically processed

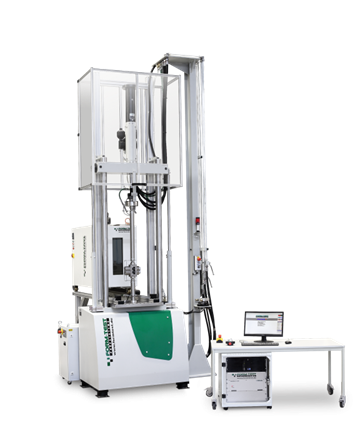

·       machine columns in chrome-plated design

·       servo-hydraulically controlled low-friction test cylinder with force transducer for exact and precise test control and evaluation

·       ergonomic test chamber height

·       safeguard



Drive & Control

·       drive station for automatic force control in a closed servo-hydraulic control loop

·       PROTEUS test software for simple test control and evaluation



Options / Accessories

·       test frame with adjustable test chamber height

·       drive-in aids for specimens and fixtures

·       triaxial cell for triaxial strength tests on rock samples

·       extra stiff test frame uniaxial / triaxial tests

·       longitudinal and lateral strain measurement equipment

·       drive station AS with powerful separate hydraulic unit

·       analysis software
