MIXING
Mortar Mixer, 5L (5.3qt)
ASTM C305; AASHTO T162; EN 196 DIN 1164; BS 3892; ISO 679
Two-speed mixer designed to mix cement mor- tars and pastes. Mixer provides manually-con- trolled cement, water and sand supplies. Mixer features a 5L (5.3qt) stainless steel bowl and ASTM stirrer, and a two-speed motor, which runs at either 140 ±5 rpm or 285 ±10 rpm.
Features control panel, which provides fast, easy control in eight languages. Numerous safety fea- tures are incorporated in the mixer and includes a service program with malfunction messages for operator, including paddle/planetary speed and time monitoring. Heavy-duty construction of aluminum and cast iron provides durability and a long service life. The mixer provides a power- ful motor for quiet and maintenance-free oper- ation aided by the use of planetary gears and a toothed, belt drive. The mixing bowl is connected to the mixer by a quick-release clamping system. The distance between the mixing bowl and the stirrer can be easily and accurately be set.
Mixer design conforms to CE standards, featuring a mixing bowl cover, electronic position monitor- ing of the mixing bowl, emergency stop switch and restart protection.

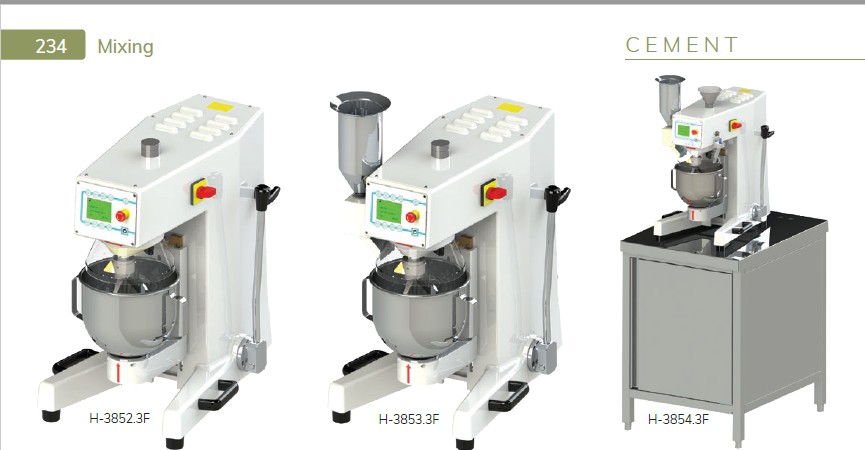

Mortar Mixer, 5L (5.3qt)
ASTM/EN—110/230V 50/60Hz H-3852.3F
