HUMBOLDT AGGREGATE

Model

Material Size (max.)

Chutes Number Width

Hopper L x W

inches (mm)

Pans (incl.)

Ship wt.

lbs. (kg)

Steel Pan

Stainless Steel Pan

Pan Model #

L x W x H" (mm)

Pan Model #

L x W x H" (mm)

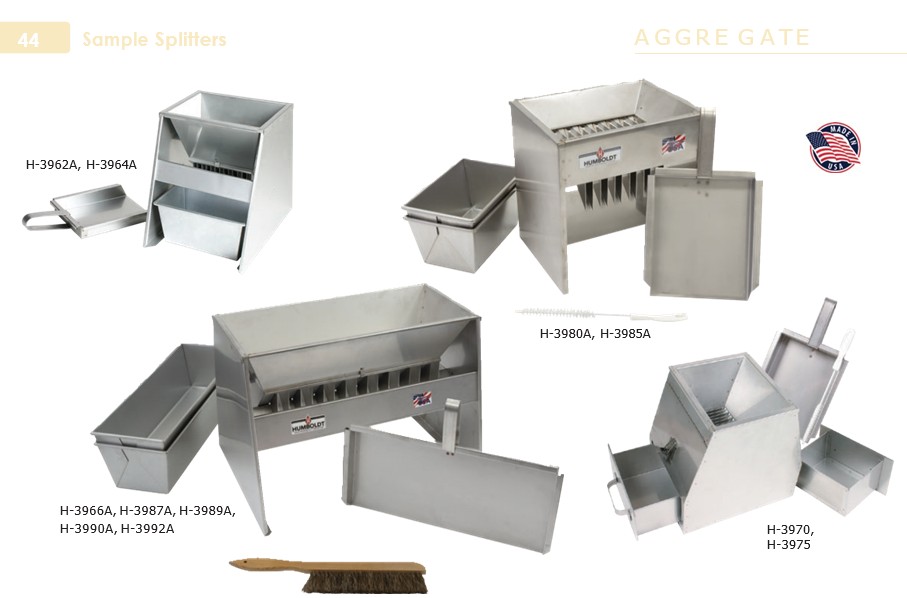

One-Piece Construction Sample Splitters

Replacement Pans for Sample Splitters

H-3962A

0.25"

(6.3mm)

14

.375"

(9.52mm)

8" x 6.75"

(203 x 171mm)

2

2 lb

(0.91 kg)

H-3981

8.0" x 5.25" x 4.25"

H-3981S

6.5" x 5.875" x 4.5"

(165 x 149 x 114mm)

(133 x 203 x 108mm)

H-3964A

0.33"

(8.4mm)

14

.500"

(12.7mm)

11" x 6.75"

(279 x 171mm)

2

2.7 lb

(1.2 kg)

H-3986

5.5" x 10.5" x 4.5"

(140 x 267 x 114mm)

H-3986S

11.25" x 6.5" x 5.5"

(286 x 165 x 140mm)

H-3966A

0.50"

(12.7mm)

14

.750"

(19mm)

14.75" x 6.75"

(375 x 171mm)

2

3 lb

(1.4 kg)

NA

NA

H-3967S

13.25" x 5.125" x 6.625"

(337x 130 x 168mm)

H-3987A

0.66"

(16.9mm)

16

1.00"

(25.4mm)

20" x 9"

(508 x 229mm)

2

5.9 lb

(2.68 kg)

H-3988

6.375" x 19" x 4.875"

H-3988AS

16.375" x 6.5" x 5.25"

(416 x 165 x 133mm)

(162 x 483 x 124mm)

H-3989A

1.33"

(33.8mm)

8

2.00"

(50.8mm)

19.5" x 9.5"

(495 x 241mm)

2

5.9 lb

(2.68 kg)

H-3988

6.375" x 19" x 4.875"

H-3988AS

16.375" x 6.5" x 5.25"

(416 x 165 x 133mm)

(162 x 483 x 124mm)

H-3990A

1.00"

(25.4mm)

10

1.50"

(38.1mm)

20" x 9"

(508 x 229mm)

2

5.9 lb

(2.68 kg)

H-3988

6.375" x 19" x 4.875"

H-3988AS

16.375" x 6.5" x 5.25"

(416 x 165 x 133mm)

(162 x 483 x 124mm)

H-3992A

1.67"

(42.3mm)

8

2.50"

(63.5mm)

24" x 9"

(610 x 229mm)

2

4.5 lb

(2.04 kg)

NA

NA

H-3993S

22" x 5.125" x 6.75"

(559 x 130 x 171mm)

Removable Hopper Sample Splitters

H-3980A

0.33"

(8.4mm)

12

.500"

(12.7mm)

11" x 8.5"

( 279 x 216mm)

2

2 lb

(0.91 kg)

H-3981

5.25" x 8.0" x 4.25"

H-3981S

6.5" x 5.875" x 4.5"

(165 x 149 x 114mm)

(133 x 203 x 108mm)

H-3985A

0.50"

(12.7mm)

12

.75"

(19mm)

14" x 8.5"

(356 x 216mm)

2

2.7 lb

(1.2 kg)

H-3986

5.5" x 10.5" x 4.5"

(140 x 267 x 114mm)

H-3986S

11.125 x 6.5 x 5.5"

(283 x 165 x 140mm)

Enclosed Sample Splitters

H-3970

0.25" (6.3mm)

14

.375"

(9.52mm)

8" x 6.5"

(203 x 165mm)

2

2.1 lb

(.10 kg)

NA

NA

H-3977S

7" x 5.75" x 3.75"

(178 x 146 x 95mm)

H-3975

0.25" (6.3mm)

24

.375"

(9.52mm)

11" x 4.5"

(279 x 114mm)

2

5.5 lb

(2.50 kg)

NA

NA

H-3976S

11.875" x 5" x 6.125"

(302 x 127 x 156mm)
